Types of 3-Phase Induction Motors and Their Differences

Chances are you have seen a 3-phase induction motor if you have ever visited a plant or seen the equipment running behind significant operations. These motors are the backbone of industries, driving everything from conveyor belts and compressors to water pumps and HVAC systems.

In contrast to BLDC motors, which tend to be found in smaller, more contained settings such as household appliances or electric cars, 3-phase induction motors reign supreme where reliability, efficiency, and brute power are not up for debate. They are built to run continuously, supporting heavy loads while maintaining energy usage within limits.

But here’s the thing - not all 3-phase induction motors are built the same way. Their design, function, and application vary based on how they’re constructed. Some are meant for high-torque operations like cranes and elevators, while others are better suited for fans and pumps. Understanding the differences between these motors can help you make better decisions, whether you're selecting equipment for a project or just curious about how industrial machines function.

How a 3-Phase Induction Motor Works?

A 3-phase induction motor operates from a three-phase AC power source, generating a rotating magnetic field in the stator. The field induces rotor current and the rotor spins. In contrast to BLDC motors, which need an external controller to maintain speed and direction, 3-phase induction motors regulate themselves with frequency and load. That's part of why they're used so much in the industry; fewer components equals fewer components to fail.

Now, let’s get into the real details: the two major types of 3-phase induction motors and how they differ.

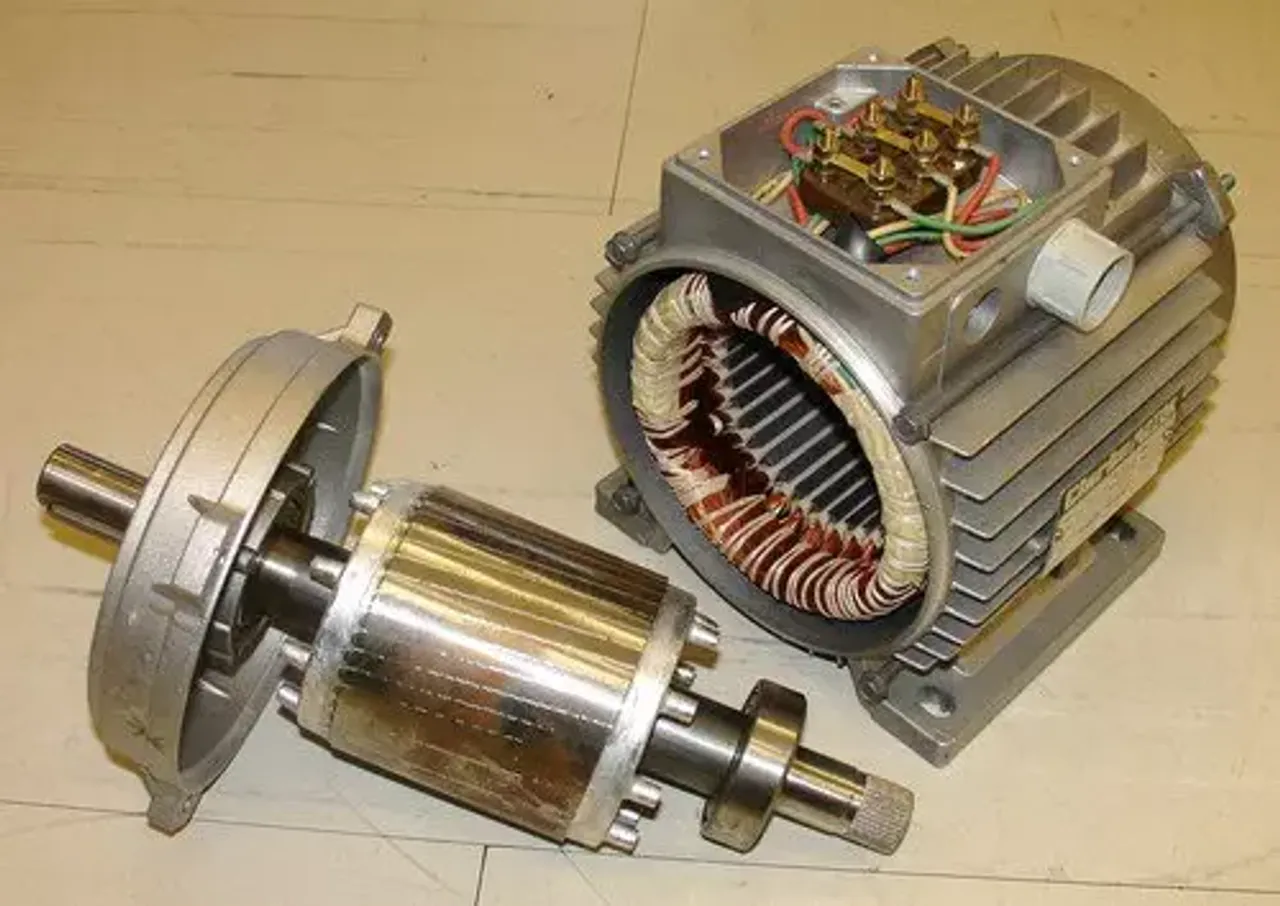

Squirrel Cage Induction Motor

If there’s one motor that rules the industrial world, it’s the squirrel cage induction motor. Named after its rotor design, which resembles a hamster wheel, this motor is used in everything from industrial fans to water pumps.

It’s tough, efficient, and requires almost no maintenance. The rotor consists of aluminium or copper bars short-circuited by end rings, which means there are no brushes or slip rings that need servicing. The result is a motor that just runs, day in and day out, with minimal fuss.

The motor proves popular with industries due to its small size and energy-saving capabilities. The motor prevents overheating, which makes it ideal for continuous machine operation settings. When maintenance downtimes can't be tolerated, this motor becomes an optimal choice.

The capability of speed adjustment is not optimal for this motor. The power supply frequency and rotor speed have a direct relationship; thus, variable speed control demands additional equipment, such as variable frequency drives (VFDs). The combination of additional equipment and complexity, together with increased costs, drives industries toward choosing other types of motors for situations requiring adjustable speed.

Wound Rotor Induction Motor

Where the squirrel cage motor is the default choice for most uses, there are instances where a more versatile method is required. That is where the wound rotor induction motor, or slip ring motor, comes in.

Advertisment

This motor is suited for high-torque applications. Instead of solid bars, its rotor has insulated windings that are wired to external resistors via slip rings. These resistors allow more precision in control over speed and torque, making them more appropriate for heavy-duty equipment like cranes, elevators, and rolling mills.

Consider the building constructions where tower cranes are used to lift tons of steel in one go. The motor must ensure a smooth and controlled start so that sudden jerks are not produced, which may prove harmful. A wound rotor motor enables this by regulating torque while in operation.

But the compromise here is maintenance. The addition of slip rings and brushes means that, with the passage of time, these components deteriorate and require replacement. That's why such motors are not as common as squirrel cage motors - industries prefer them only when accurate speed control and a high starting torque are absolutely critical.

What Sets The Two Apart?

Key Takeaway:

• Both motors have their strengths.
• Choose based on your specific requirements.

What About BLDC Motors? How Do They Compare?

With the rise of BLDC motors in electric vehicles and home appliances, some people wonder whether they can replace 3-phase induction motors in industrial settings.

BLDC motors have an edge when it comes to energy efficiency and precise control, but they also require complex electronic controllers. That makes them more expensive and less rugged compared to 3-phase induction motors.

In industries where machines need to run non-stop for years with minimal maintenance, a BLDC motor simply can’t compete. That’s why, despite advancements in motor technology, the 3-phase induction motor remains the undisputed leader in heavy-duty applications.

Conclusion

Both the squirrel cage and the wound rotor motors are where they belong in the industrial scene. If you require efficiency, simplicity, and reliability, a squirrel cage motor is the way to go. But if variable speed and high starting torque are important, then you should opt for the wound rotor motor. Companies like Godrej Enterprises Group understand the requirements of industries and provide solutions specific to various use cases. Whether motors for construction, manufacturing, or energy systems, the appropriate selection can prove to be the difference in performance and cost-effectiveness.
